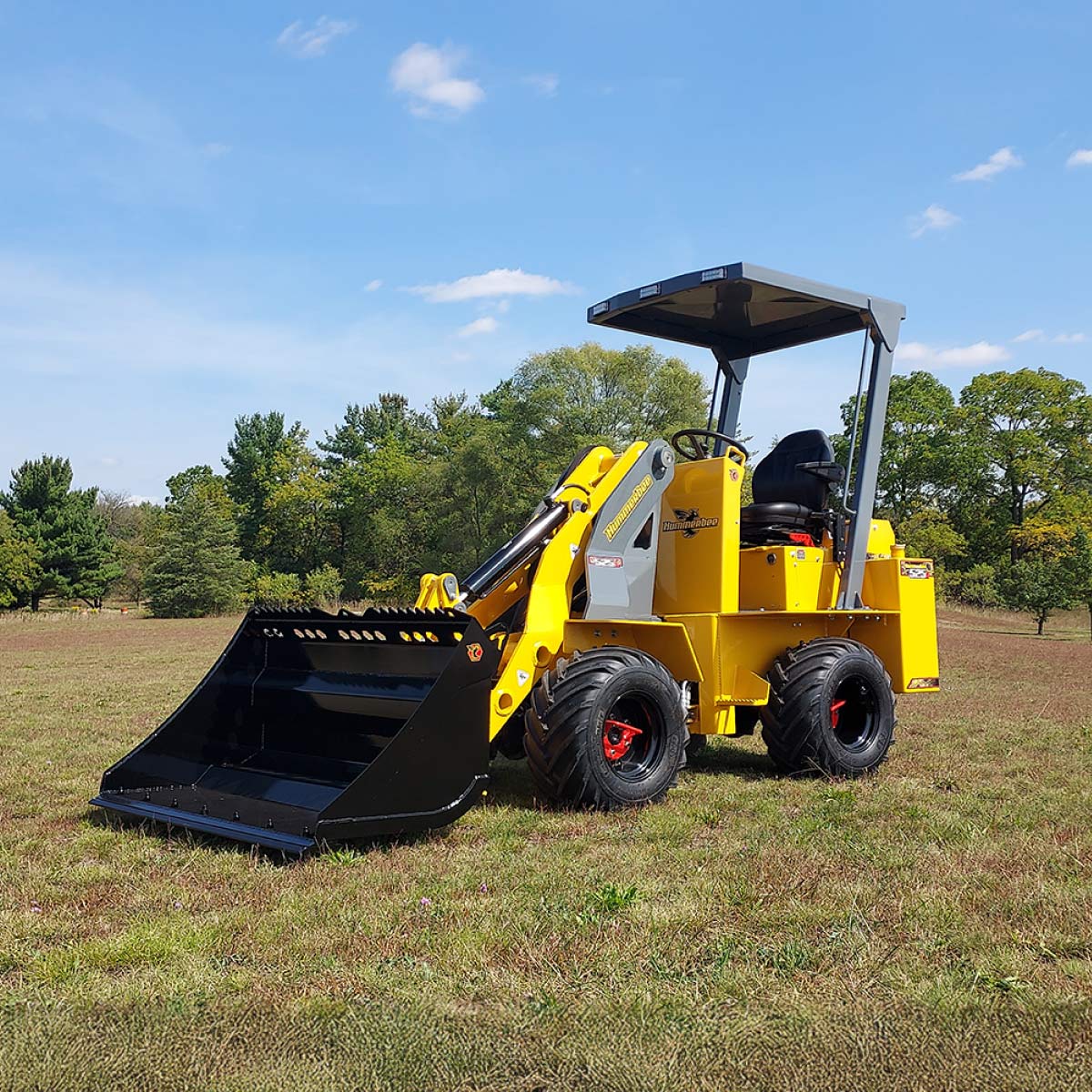

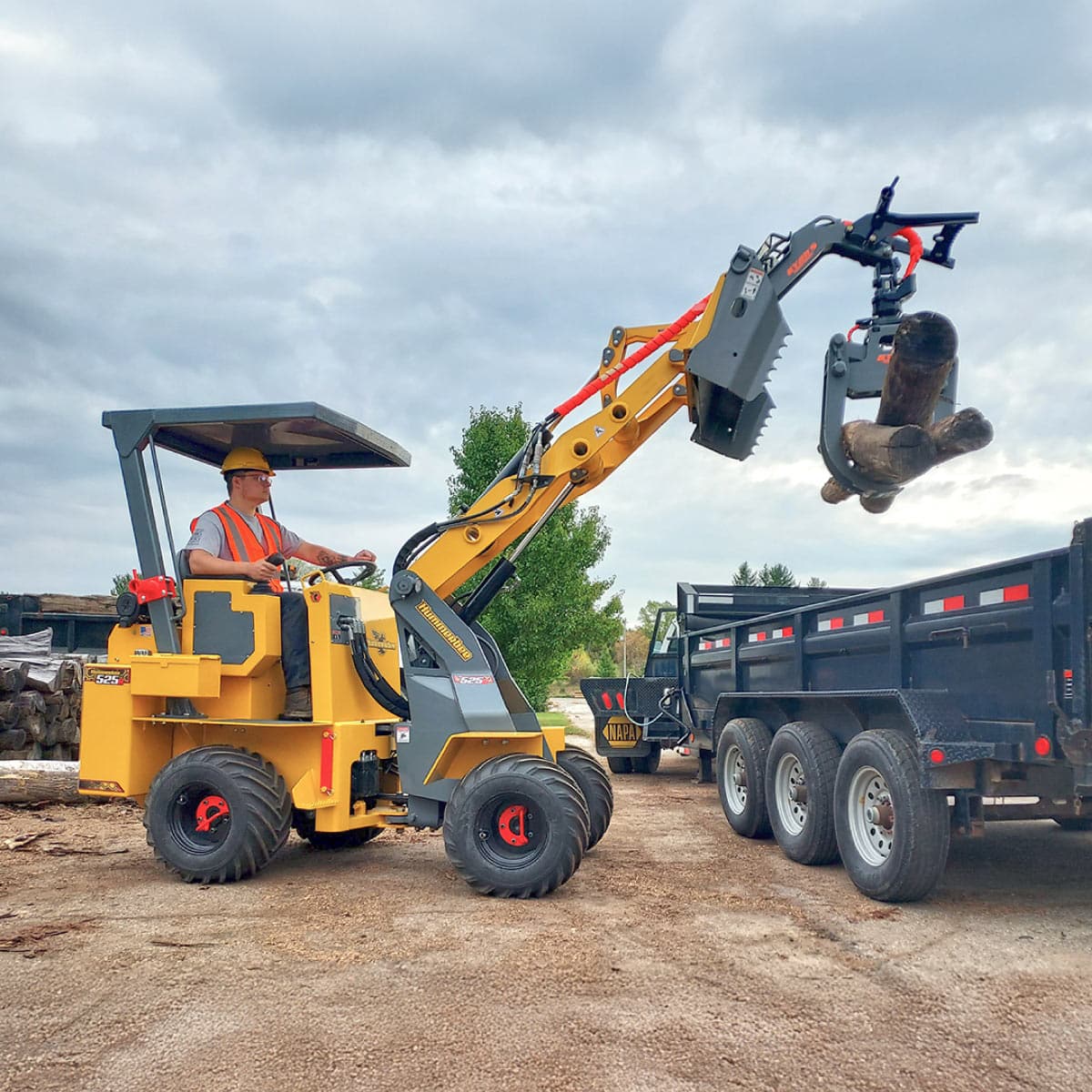

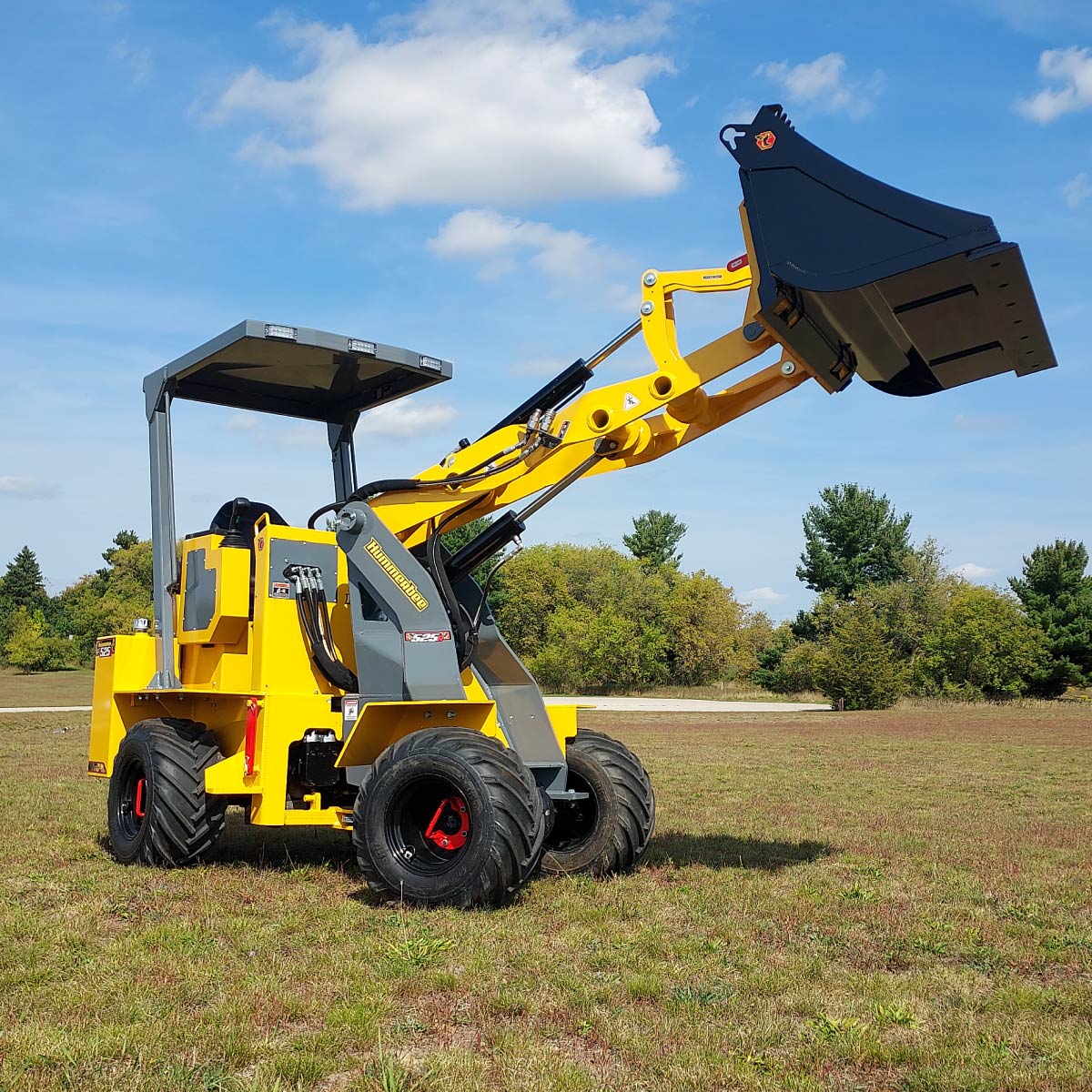

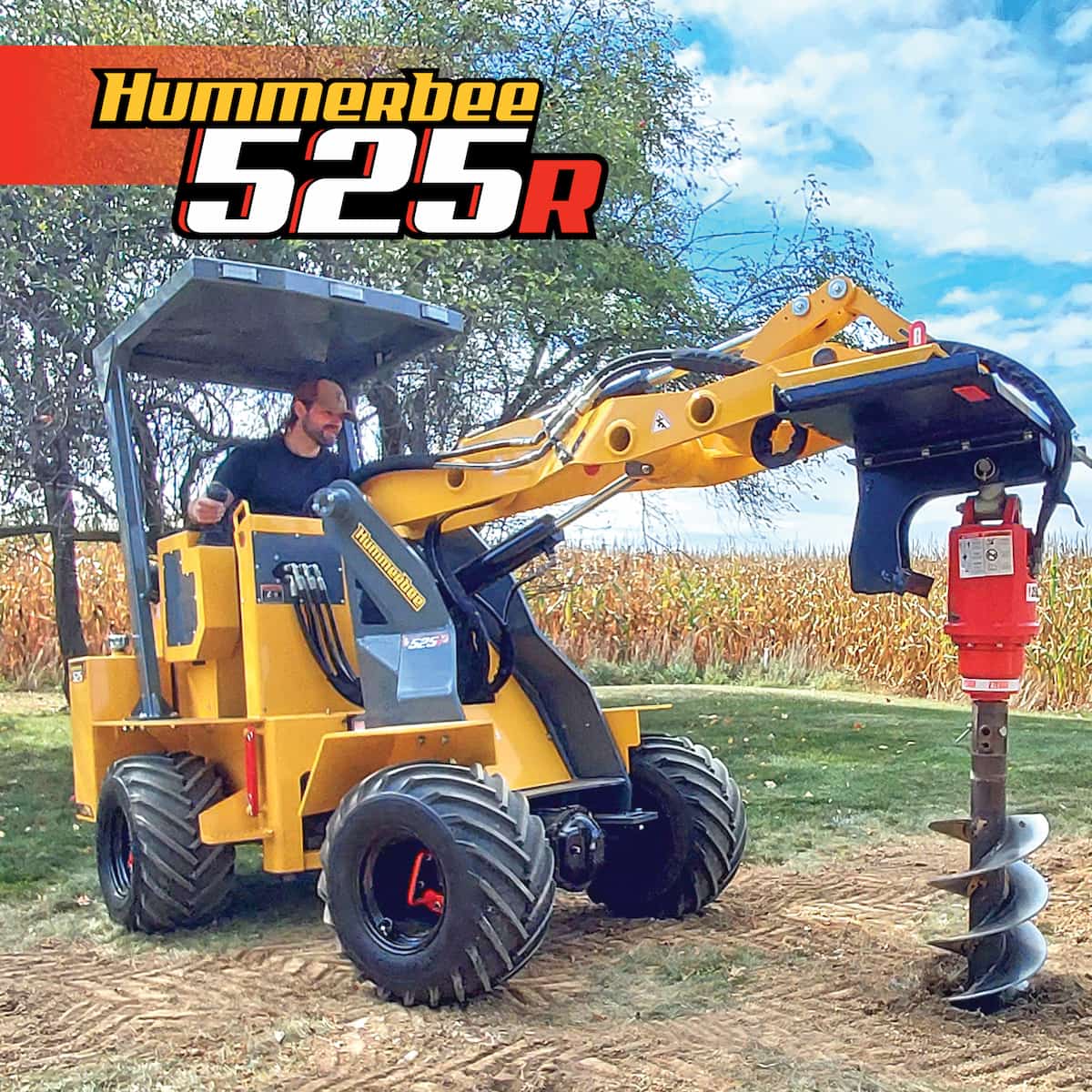

The Hummerbee 525R Compact Loader combines power, precision, and efficiency in one compact, easy-to-maneuver machine. Designed to excel in tight spaces and tough conditions, the 525 Loader is an ideal choice for industries that require reliable equipment in challenging environments, from construction sites to agricultural applications.
Compatible with All Universal Skid Steer Attachments
The Hummerbee 525R Compact Loader combines power, precision, and efficiency in one compact, easy-to-maneuver machine. Designed to excel in tight spaces and tough conditions, the 525R Loader is an ideal choice for industries that require reliable equipment in challenging environments, from construction sites to agricultural applications.
| Engine: | Kubota V1505 Diesel, 1.5L, 4-Cylinder |
|---|---|
| Horsepower: | 25 HP @ 2,600RPM |
| Torque: | 68.5 Ft-Lbs @ 1,700 RPM |
| Drivetrain: | 4-Wheel Drive / Limited Slip |
| Transmission: | 2-Speed / Hydrostatic |
| Maximum Speed: | 10 MPH-High / 4 MPH-Low |
| Fuel Capacity: | 15 gallons |
| Hydraulic Oil Capacity: | 13 Gallons (Max) |
| Operator Controls: | Electronic Joystick |
| Auxiliary Hydraulics Flow: | 13 GPM / 3000 PSI |
| Auxiliary Hydraulics Circuit: | 2-Line (4-Line Optional) |
| Operating Weight: | 4,570 lbs. with Pneumatic Ag Tires |
| Tipping Load with Counterweight:(Arm Extending Horizontally) | At Tool Carrier- 3,900 lbs. | 12″ Load Center- 2,800 lbs. |
| Tipping Load w/o Counterweight:(Arm Extending Horizontally) | At Tool Carrier- 3,400 lbs. | 12″ Load Center- 2,500 lbs. |
| Maximum Lift Height: | 102″ (to Hinge Pin) |
| Overall Length: | 113″ without Attachment |
| Overall Height: | 89.5″ (Approx.) |
| Overall Width: | 55” with Standard Tires |
| Wheel Base: | 53″ |
| Standard Tires: | 26x12x12; Liquid-filled Ag Tires |
| Ground Clearance: | 7″ (to Transfer Case) |
| Turning Radius: | 42″ |
| Frame Oscillation: | 8 Degrees |
