Product Description
The ArborPro Compact Loader Package is engineered for demanding tree care and arborist applications, combining high-performance features with exceptional durability and versatility. Designed with rugged components and operator comfort in mind, this package makes handling tough jobs in challenging environments easier than ever.

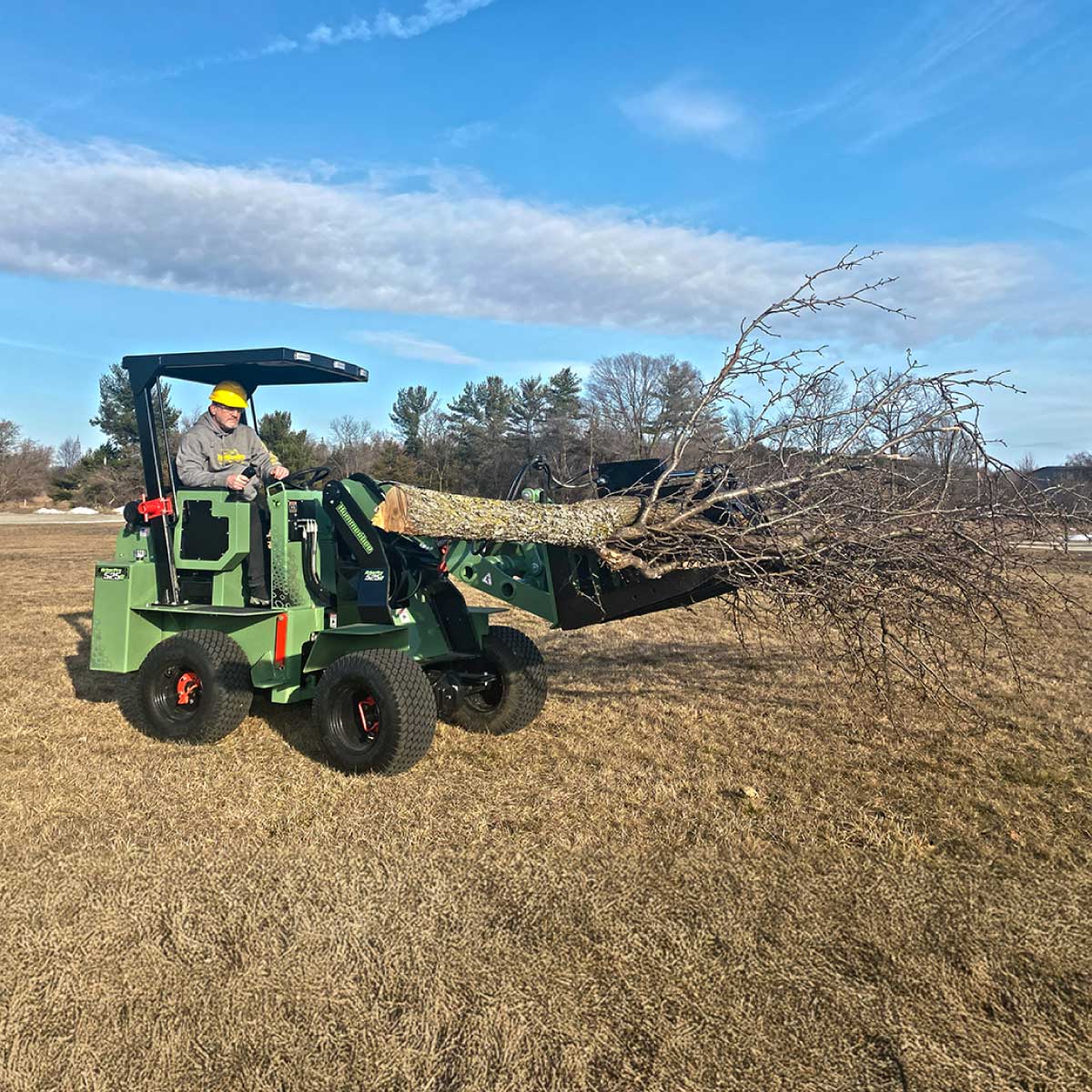

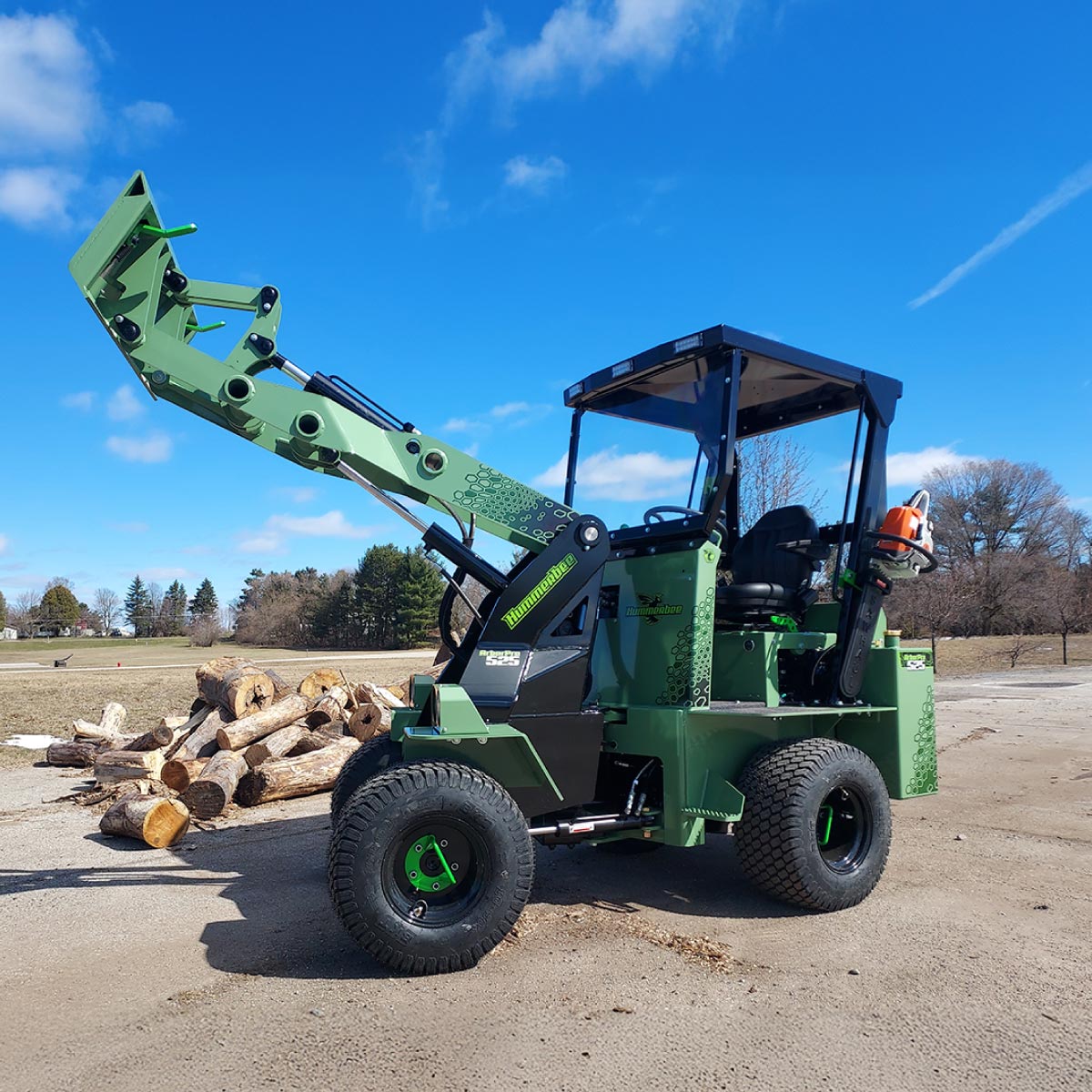

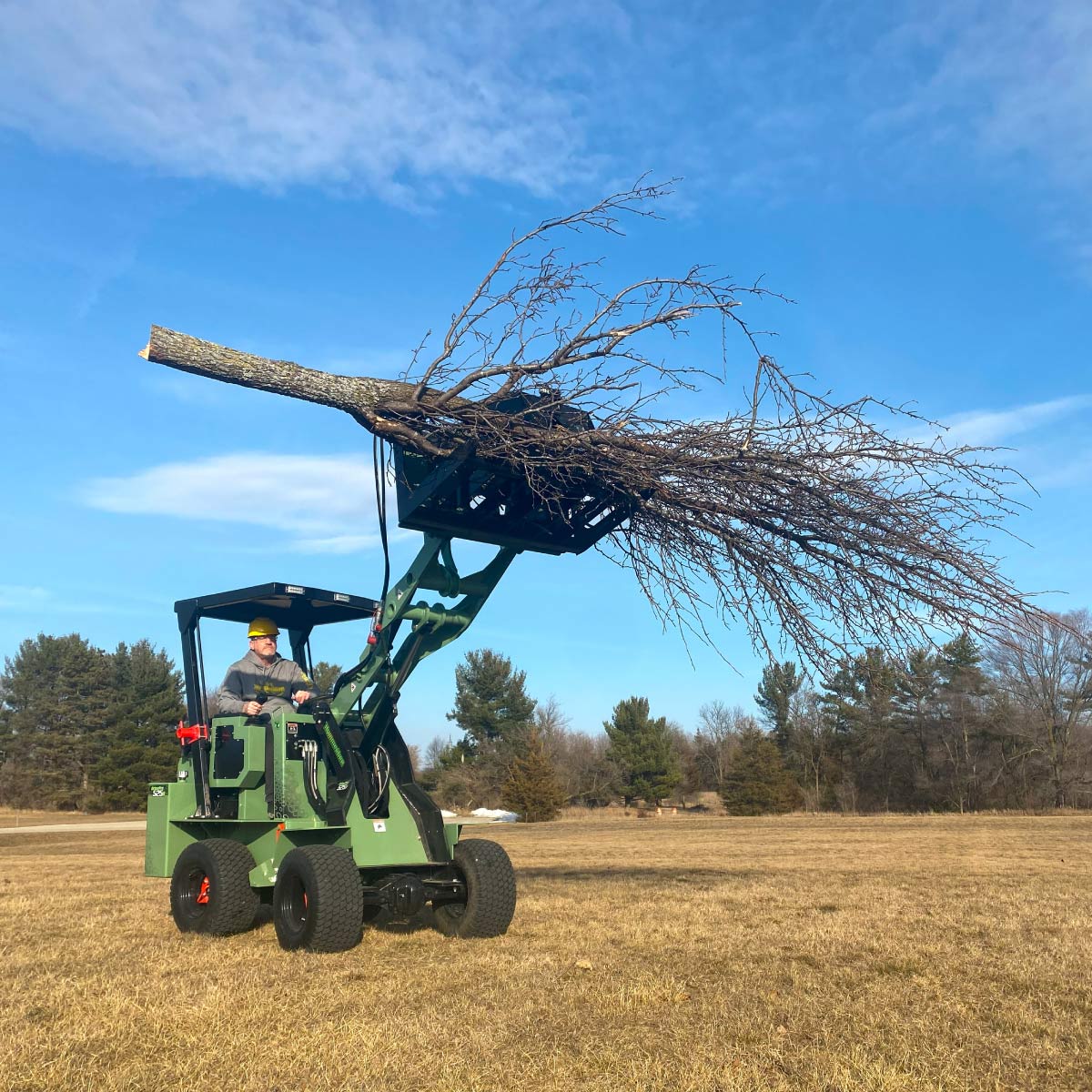

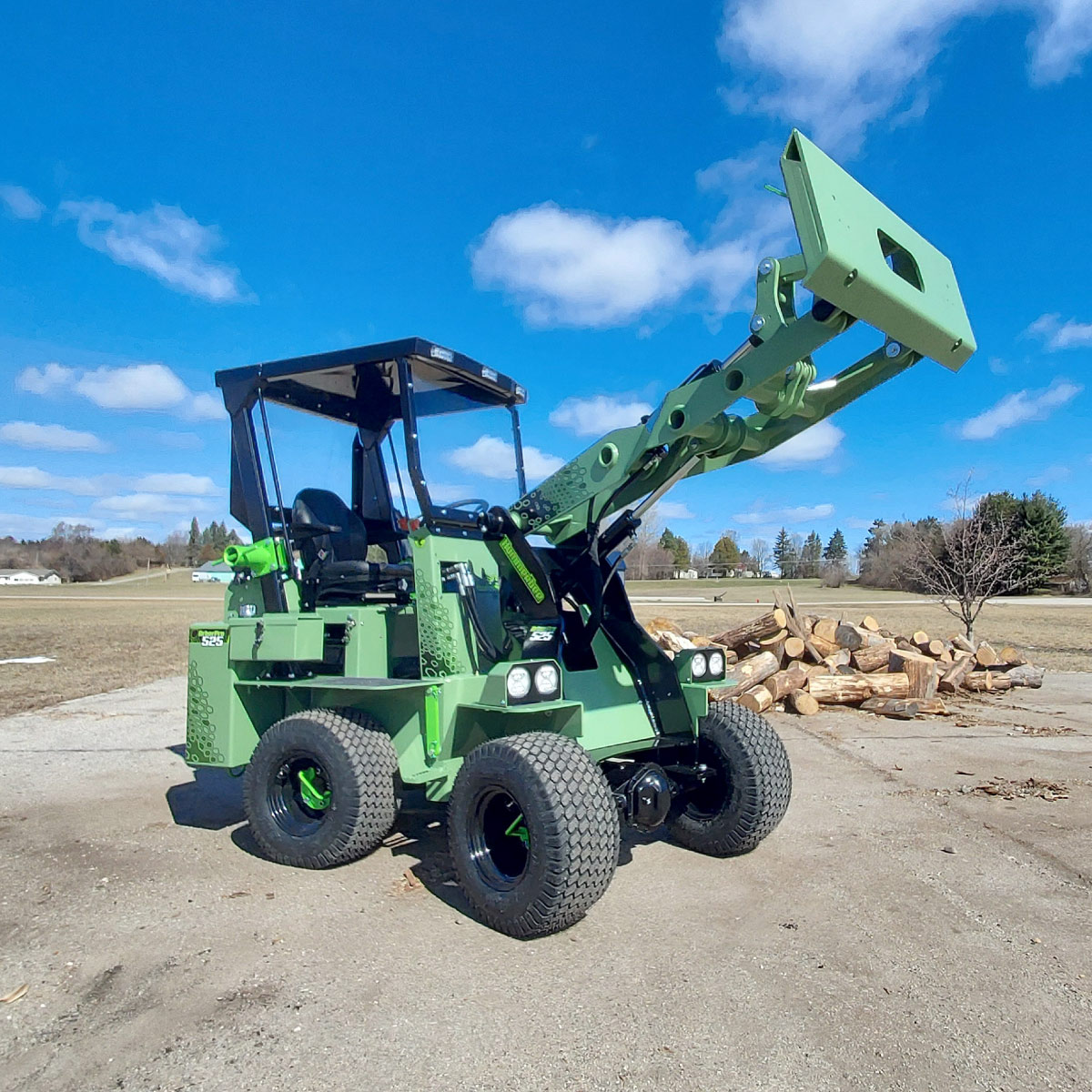

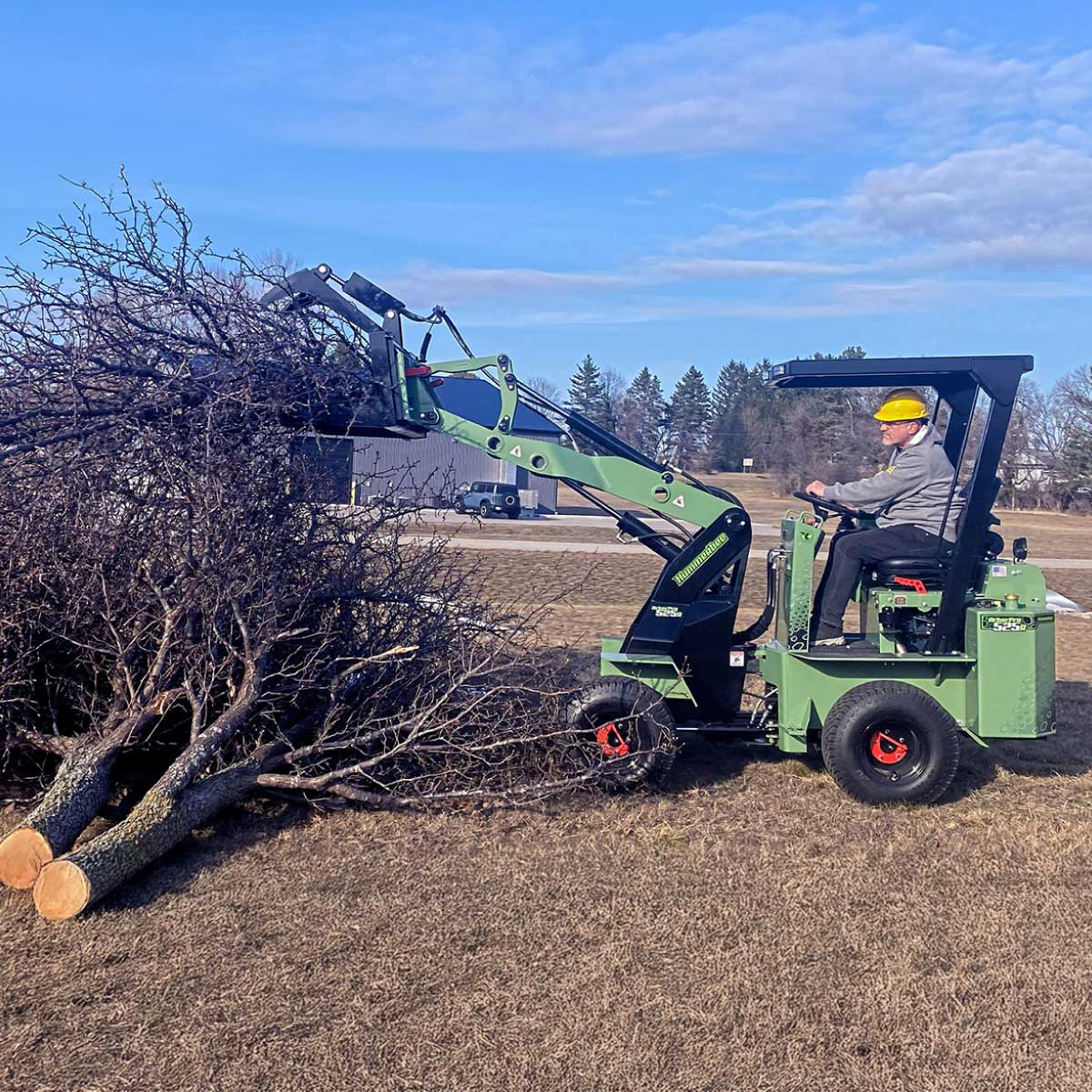

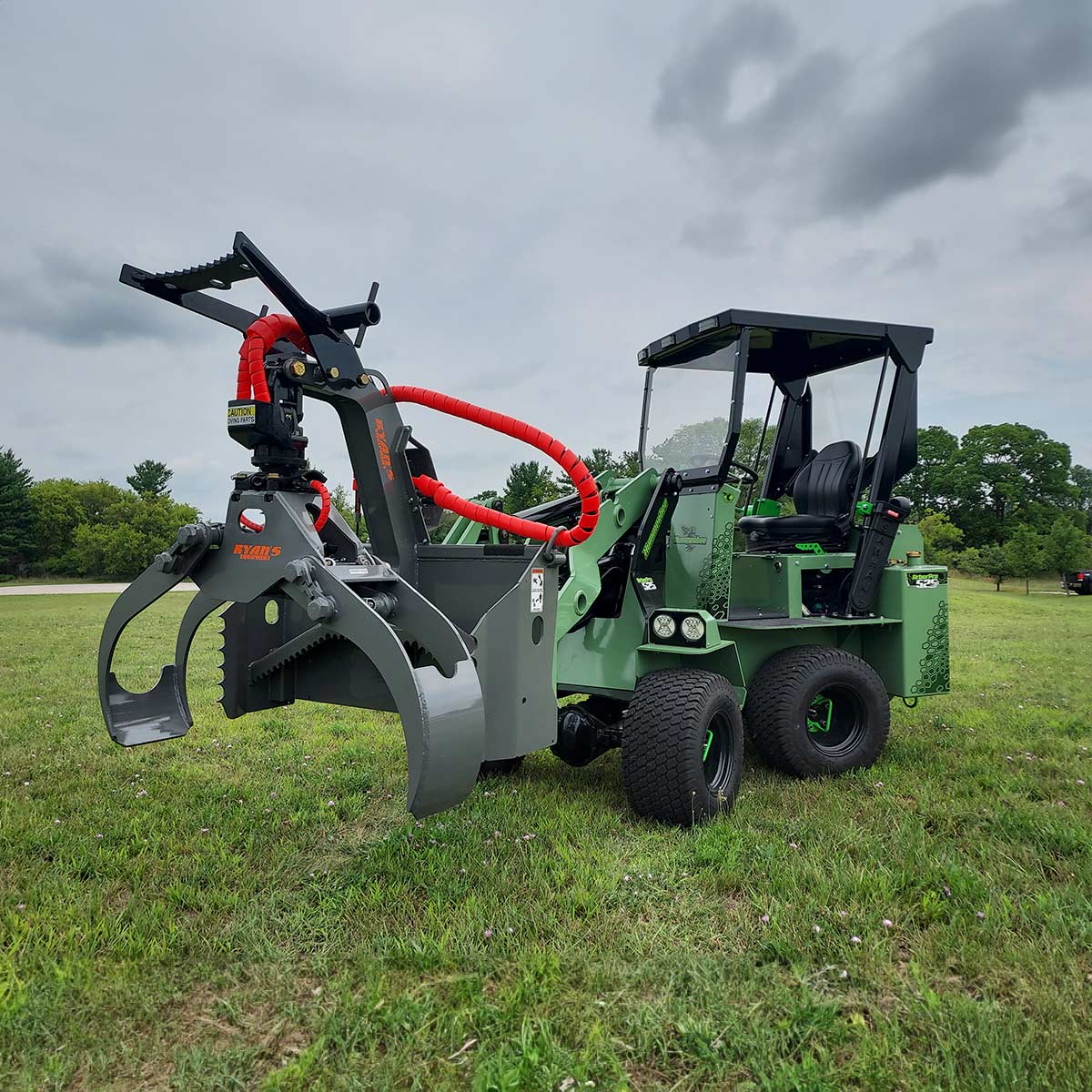

The ArborPro Compact Articulated Loader is tough, reliable, and purpose-built for arborists and tree care professionals who need equipment as resilient as the work they perform. Contact us today to learn more or get a custom quote!
Specifications

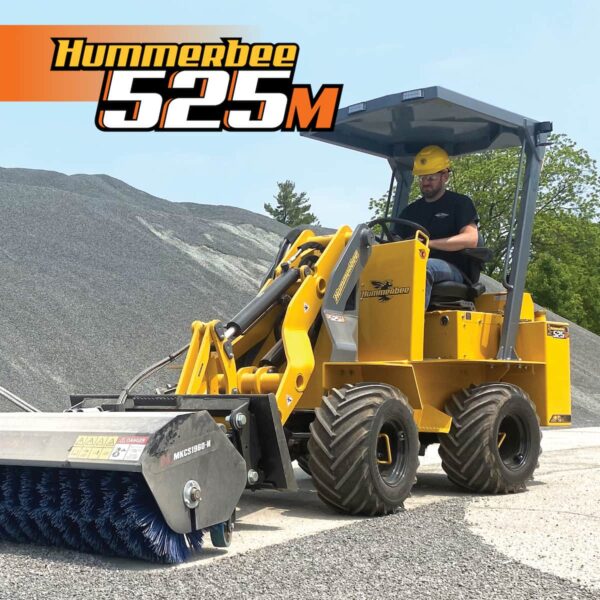

Details Shown are for the 525M Compact Loader
| Engine: |
Kubota V1505 Diesel, 1.5L 4-Cylinder, Tier 4 |
| Horsepower: |
24.8 HP @ 2,600RPM |
| Torque: |
68.3 Ft-Lbs @ 1,700 RPM |
| 4WD Transmission: |
Single Speed |
| Maximum Speed: |
10 MPH/High |
| Fuel Capacity: |
15 gal Tank |
| Hydraulic Oil Capacity: |
15 Gal Tank (13 gal max fill level) |
| Aux. Hydraulics Flow: |
14 GPH |
| Total Weight: |
4,570 lbs. w/Ag Tires; Pneumatic |
| Overall Length: |
113″ w/o Bucket |
| Overall Width: |
55” w/Standard Tires |
| Overall Height: |
89.5″ (Approx.) |

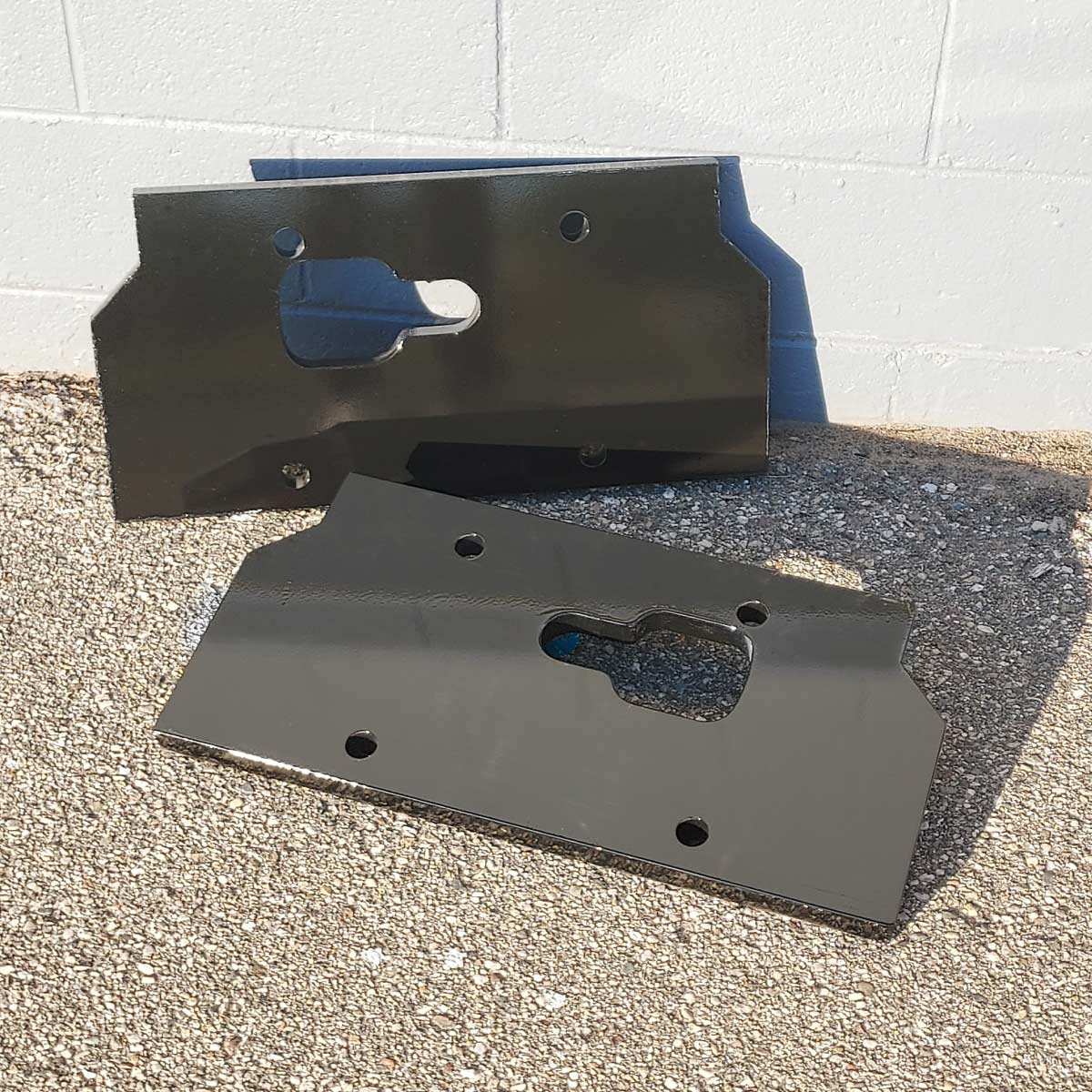

| Tipping Load w/ Counterweight: |
At Tool Carrier: 3,200 lbs; 12″ Load Center: 2,500 lbs. |
Tipping Load w/o Counterweight: |
At Tool Carrier: 2,300 lbs; 12″ Load Center: 1,900 lbs. |
| Maximum Lift Height: |
102″ (to Hinge) |
Ground Clearance: |
7″ from Ground to Transfer Case |

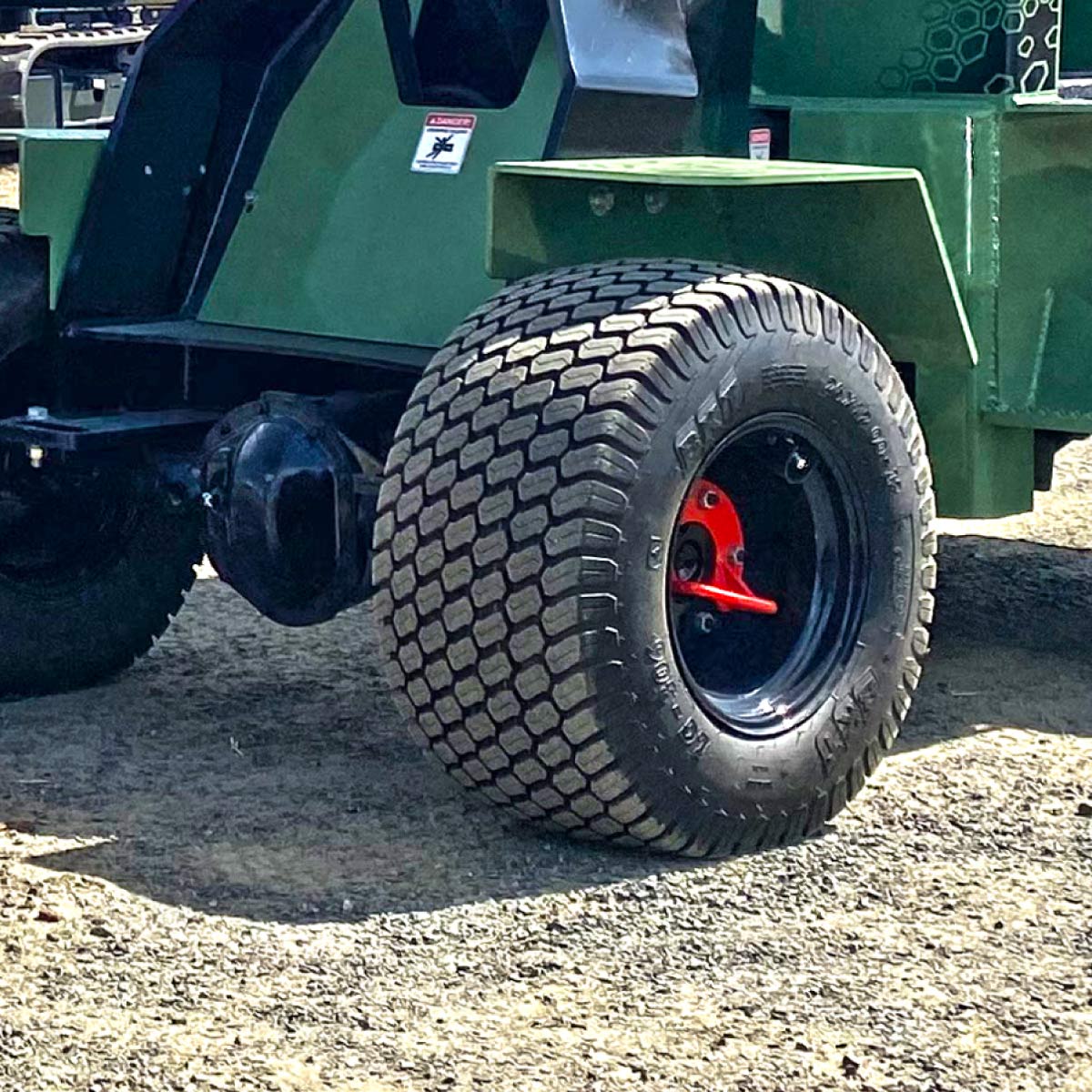

Standard Tires: |
26×12.50×12; Ag/Pneumatic |
| Turning Radius: |
42 Inches |
| Frame Oscillation: |
+/-8 Degrees |
| Wheel Base: |
53″ |
Compact Loader Attachments
Compatible with All Universal Skid Steer Attachments

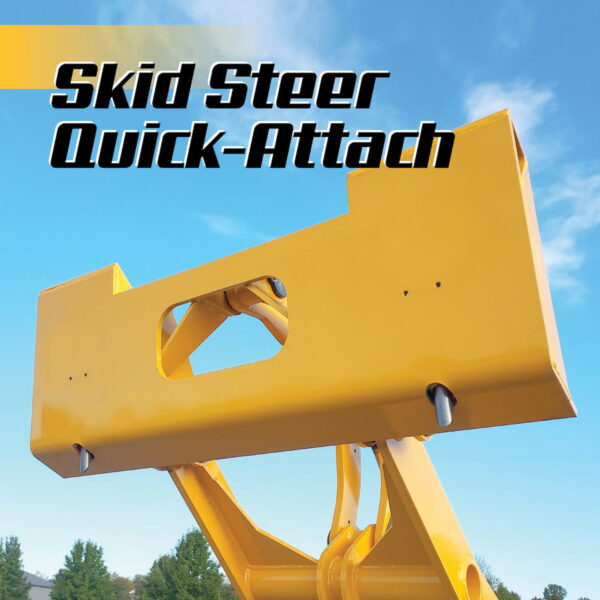

The Hummerbee Compact Articulated Loader is designed to accommodate virtually all universal skid steer style loader attachments. Unlike European-made compact loaders, you can use the attachment style and brand of your choice, readily available from a number of U.S. manufacturers. And, with our signature hydraulic tool locking system, you never have to leave the cab to secure your attachments to the tool mounting plate. Versatile, practical, economical…just a few of the many reasons why Hummerbee is the best choice for your next compact articulated loader.
Some of the most popular skid steer style attachments compatible with the Hummerbee Compact Articulated Loader include:
- 3-Point Adapters

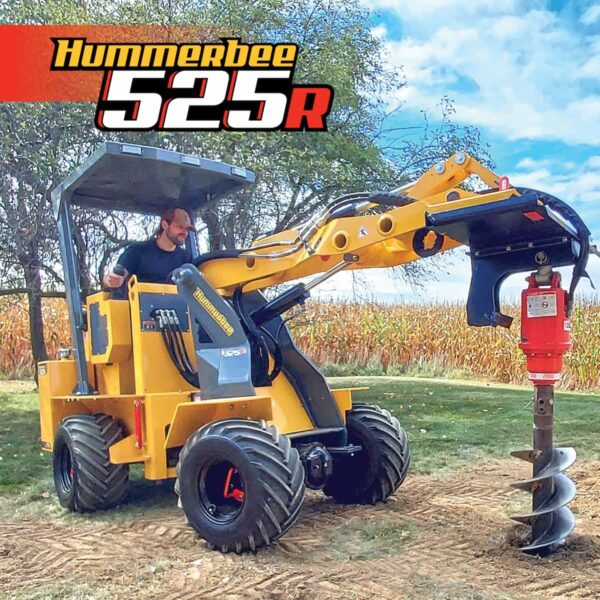

- Augers
- Backhoes
- Bale Handlers
- Bale Spears
- Brooms
- Buckets
- Concrete Breakers
- Concrete Claws
- Concrete Crushers
- Crusher Buckets
- Dozer Blades
- Forestry Mulchers
- Graders
- Harley Rakes
- Hitches
- Hoppers

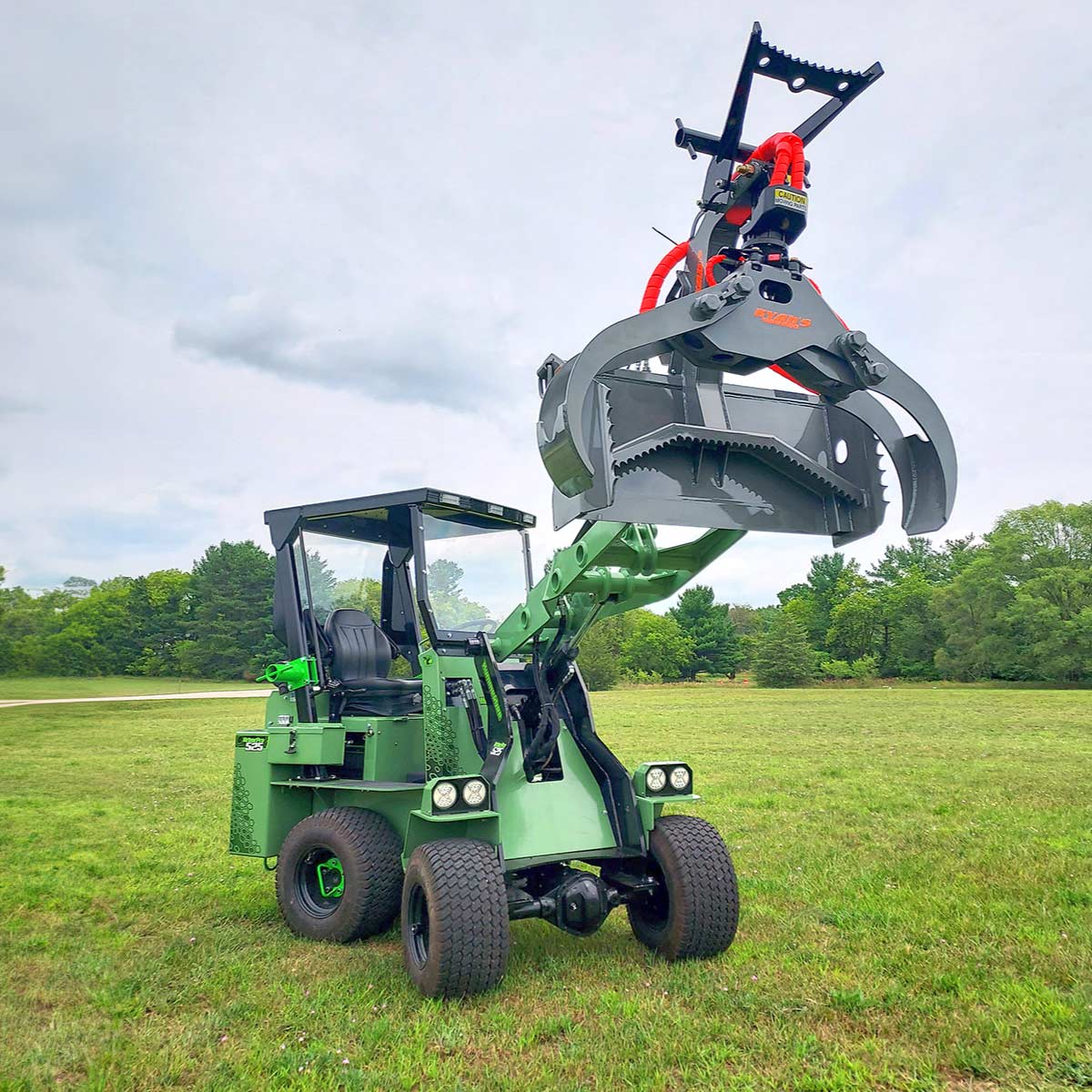

- Grapples
- Landscape Rakes
- Log Splitters
- Material Spreaders
- Mowers
- Pallet Forks
- Post Drivers
- Post Pullers
- Rotary Tillers
- Screening Buckets
- Snow Blowers
- Snow Plows
- Snow Pushers
- Sod Rollers
- Soil Conditioners
- Stump Grinders
- Tree Pullers
- Tree Saws
- Tree Shears
- Tree Spades
- Trenchers
- Winches
- Wood Chippers
