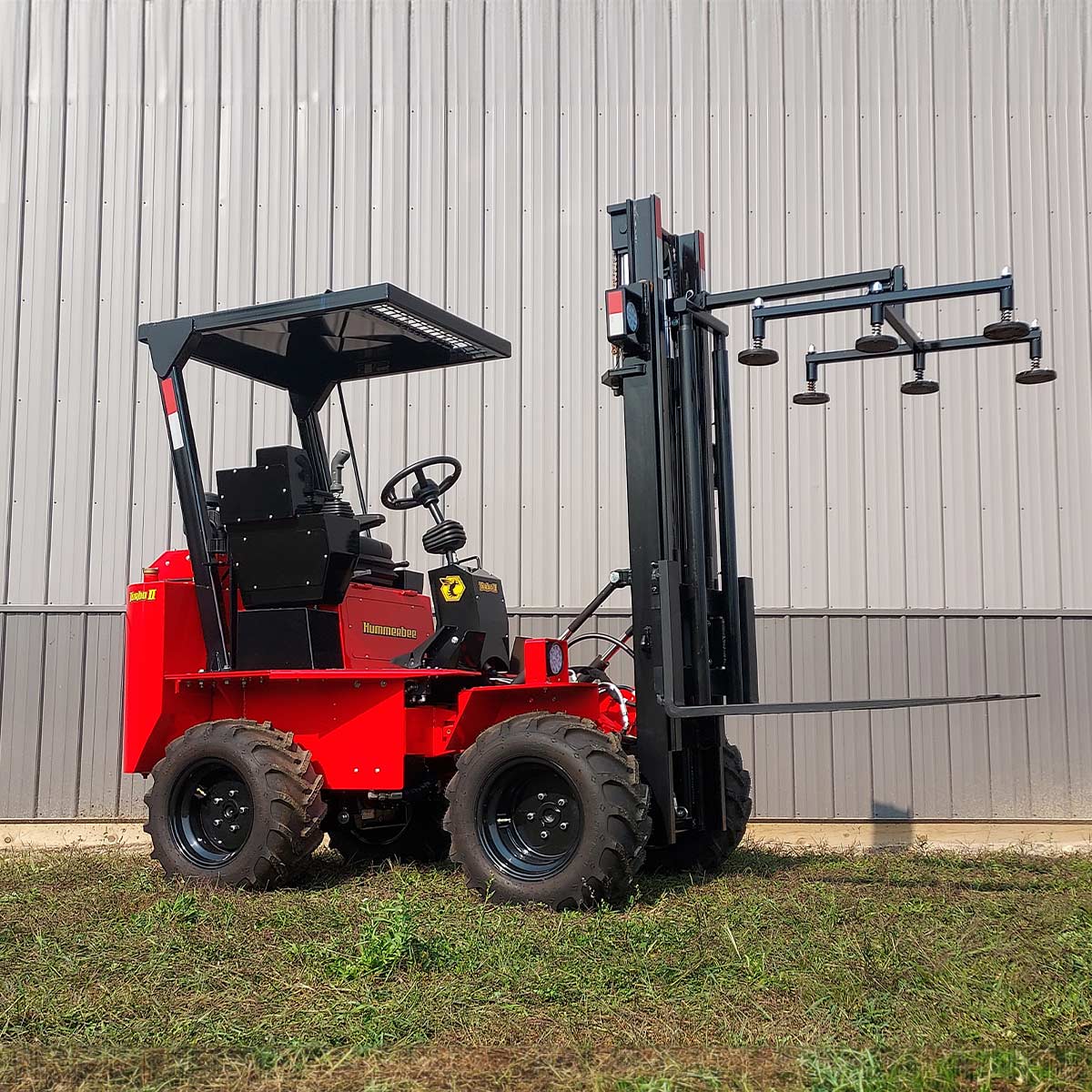

Hummerbee Turbo II Forklift Right Side View
Hummerbee XRT Forklift Right Side View Hummerbee XRT
Hummerbee Classic Forklift Right Side View Hummerbee Classic

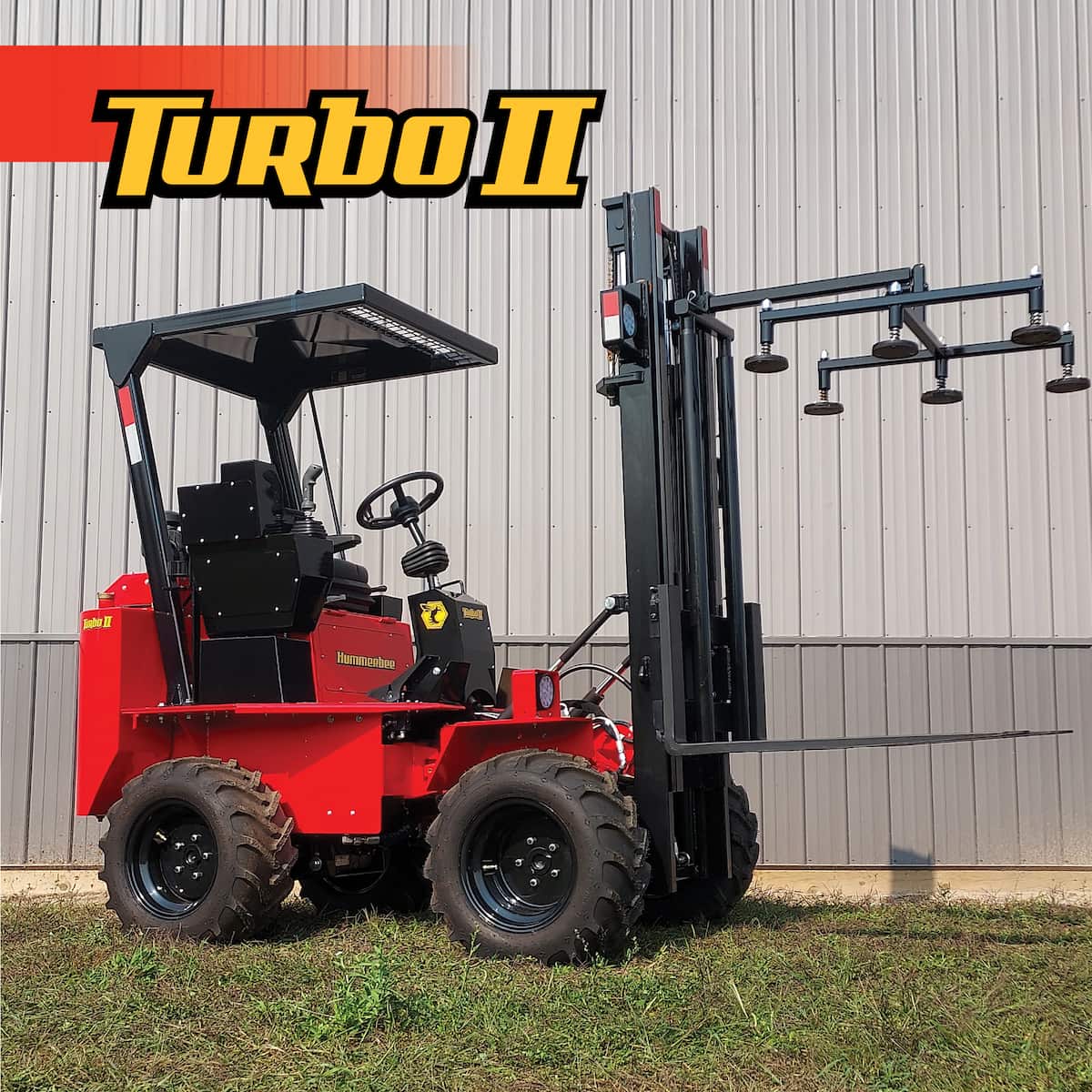

Hummerbee Turbo II

Packed with Power and Functionality

With the extreme economic challenges facing agricultural businesses today, enhancing productivity is a top priority. The Hummerbee Turbo II was developed to meet those challenges. Since it’s inception, we’ve continuously improved the power, efficiency, and durability of this well-rounded machine.

From the engine to the transmission, from the joystick to the hydraulics, the Turbo II is the most efficient and versatile forklift in our lineup. With its high-performance, 56HP turbo diesel engine, and 2-speed transmission, this middle-weight champ really packs a punch.

Kubota KDI 1903TCR | 56HP | 3-CYL | TIER 4

  • Max. Lift Capacity – 3,000 lbs.
  • Max. Mast Height – 126″ Standard; 144″ Optional
  • Base Weight – 5,660 lbs.
  • Aux. Hydraulic Flow – 16 GPM

Give Us A Call Today!

(800) 943-8677

Hummerbee Made In USA

Hummerbee Turbo II Forklift Right Side View
Hummerbee Turbo II

Product Description

More Power to Handle More Work

The Hummerbee Turbo II is designed and engineered to get optimum performance out of a smaller machine footprint. The 56HP turbo diesel engine is equipped with an intercooler to reduce NOx emissions, boost power, and lower engine temperature for peak performance, and longer engine life. This lets you work heavier loads, for a longer time, to get more done.

The impressive power plant easily manages the 4WD, on-the-fly, 2-speed hydrostatic transmission at both the low and high ends. And, with the optional quick-couplers and 21 GPM combined hydraulics flow, the Turbo II provides powerful auxiliary attachment operation.

Whether it’s a bucket, a mower, a log splitter, or a snow blower, the Turbo II can run it with ease.

The Technological Advantage

The intuitive, multi-function joystick controller and electronic control switches allow for intuitive, on-the-fly tool and load adjustments. Our exclusive, easy-to-read digital ECU display is programmed to provide accurate, real-time engine statistics, along with a configurable scale gauge.

Rounding out the control console is an integrated engine systems diagnostics port. Quickly diagnose any fault codes thrown at you for faster troubleshooting and maintenance. And, if an ECM upgrade is required or released by the engine manufacturer, Hummerbee will provide the file to be uploaded directly into the ECU via the diagnostics port.

Unmatched Versatility

The best-in-class lift capacity, paired with a manageable, 5,660 lb. weight package, makes the Turbo II a favorite choice for many agricultural applications where a versatile, multi-functional machine with the strength, stability, and ground clearance to navigate even the roughest terrain, is a necessity.

Outfitted with our largest capacity fuel tank, and a fuel-efficient, high-performance, 3-cylinder diesel engine, the Turbo II will keep you busy from dusk ‘till dawn.

Peace of Mind

We’re so confident in the quality and durability of the Hummerbee Turbo II, we back it up with a 2-Year, Parts & Labor Warranty.

Features

  • Tier 4 Final Kohler-KOI 1903TCR 3-Cycle Engine
  • Multi-function joystick controller and electronic control switches
  • 4 Wheel Drive
  • 2 Speed, Dynamic Drive Shaft On-The-Fly Transmission
  • 21 GPM combined hydraulics flow provides auxilliary attachment operation

Shown in Standard Red Color Option

  • Standard Color: Yellow, Green, White, Orange, Red
  • Optional: Custom Paint Matching Available

Specifications

Engine: Kohler-KDI 1903TCR, 3-Cylinder, Tier 4 Final
Horsepower: 56 HP @ 2,600 RPM, Turbo Charged
Torque: 166 Ft-Lbs @ 1,500 RPM
Transmission: 4WD; 2-Speed Hydrostatic
Maximum Speed: 12 MPH/High; 6 MPH Low
Fuel Capacity: 17 gal Tank
Hydraulic Oil Capacity: 17 gal Tank (15 gal max fill level)
Hydraulic Steering: 5 GPM
Aux. Hydraulics Flow: 16 GPH
Total Weight: 5,660 lbs. w/Liquid Filled Tires
Fork Length: 42″ Standard; 48″ Optional
Overall Length: 95″ w/o Forks; 138.5″ w/42″ Forks
Overall Width: 55” w/Standard Tires
Overall Height: 94.5″; 104.5″ w/Optional 144″ Mast
Maximum Mast Height: 126″ Standard; 144″ Optional
Maximum Lift Capacity: 2,000 lbs.: 3,000 lbs. w/Counterweights
Mast Side Shift: 6″
Mast Tilt: 16 Degrees
Max. Articulation Angle: 33 Degrees
Frame Oscillation: +/-8 Degrees
Standard Tires: 29×12.50×15; Liuid Filled; Ag
Wheel Base: 53.75″
Ground Clearance: 8″ from Ground to Transfer Case
Standard Colors: Yellow, Green, White, Orange, Red

Forklift Attachments

Maximize the functionality of your Hummerbee forklift with a range of versatile attachments designed for diverse applications. From orchards to warehouses, these tools allow you to tackle tasks efficiently and effectively.

  • Forks: Ideal for standard material handling, including pallets, crates, and beehives, ensuring smooth and secure transport.
  • Load Clamp: Perfect for apiary operations and orchards, the load clamp securely grips and moves beehives or boxes of crops with precision.
  • Drum Grabber: Safely lift and transport large drums, making it an excellent tool for agricultural, industrial, or warehouse use.
  • Brush Mower: Easily clear overgrown vegetation and brush, ideal for maintaining orchards, fields, and site perimeters.
  • Snow Blade: Keep your operations running through winter by efficiently pushing and clearing snow from work areas and pathways.
  • Custom Attachments: Need a specialized tool for your operation? Hummerbee offers custom attachment solutions to meet your needs.

Upgrade your Hummerbee forklift with attachments built to handle the toughest jobs. Contact us today to explore your options or inquire about custom attachment solutions!
